SWITCHGEAR AND MDPS

At SSDi, we provide switchboards and switchgears designed for efficient electrical distribution. Our products feature robust, enclosed, free-standing designs equipped with either circuit breaker or fusible overcurrent protection. These solutions are completely modifiable, making them ideal for a variety of applications. Custom-built for both service entrance and distribution, our switchboards are perfect for commercial, retail, quick-serve restaurants, and industrial environments, ensuring safe and effective power management tailored to your specific needs.

SSDi offers an auxiliary section designed for seamless cable or bus transitions, providing additional space for service conductors.
This can also accommodate customer metering or incoming lug pads, enhancing versatility in your electrical setup.

Switchgears are custom-made for use as service entrance equipment or as distribution centers in a commercial, retail, quick-serve restaurants, and industrial applications.

Our frames support a wide range of special components, such as automatic throwover systems, transfer switches, and specialized metering systems, ensuring we can meet even the most complex customer requirements with ease and flexibility.

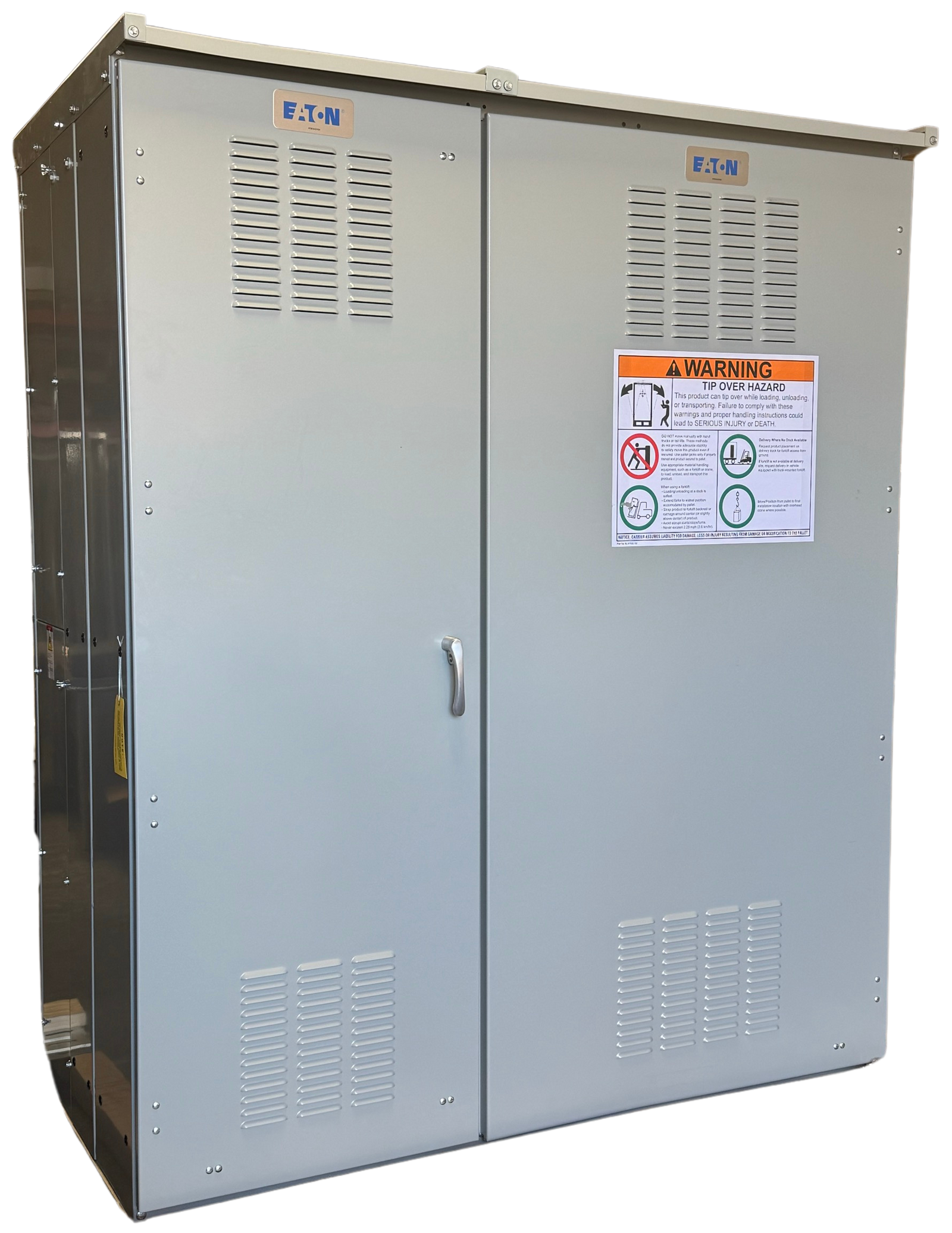

Switchgear

  • UL 891 Listed
  • Sections rated up to 1600A Horizontal bus, 1600A Vertical bus
  • Single mains to 1600A
  • Six subdivision mains up to 1600A
  • Individually mounted feeders to 1600A
  • Suitable for service entrance or distribution
  • NEMA Type 1 or Type 3R enclosures
  • Front or front and rear accessible
  • Voltage to 208Y/120V-277Y/480V 3P 4W 60HZ
  • Hot or cold sequence utility metering
  • Customer metering
  • Surge protective devices (SPD)
  • cULus listed

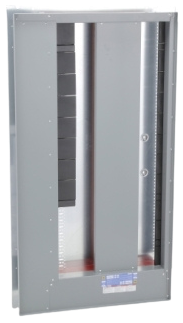

MDPS

  • Up to 1200A, 80% or 100% rated main breaker
  • Interiors rated up to 1200A Main Lugs Only
  • Suitable for use as service entrance equipment with appropriate barriers, cULus
  • Available with an aluminum bus or copper bus.
  • Solid neutral is mounted in the customized compartment with the main circuit breaker/main lugs
  • Main Distribution Panelboards top and/or bottom-feed
  • All main distribution panels with six disconnects or less
